CLEANCLIP
hygienic, adjustable, versatile
NEUMO CleanClip pipe hangers are engineered for hygienic installations and offer full 360° adjustability to precisely align with the orientation of your piping system. Their design ensures efficient drainage and eliminates dead spaces, making them ideal for sanitary process environments.
Whether for equipment skids, infrastructure layouts, or biopharmaceutical installations, CleanClip offers a flexible, robust, and easy-to-clean support solution – suitable for applications in the pharmaceutical, biotechnology, and food industries.
Types - NP / NPF / NPM / NPR

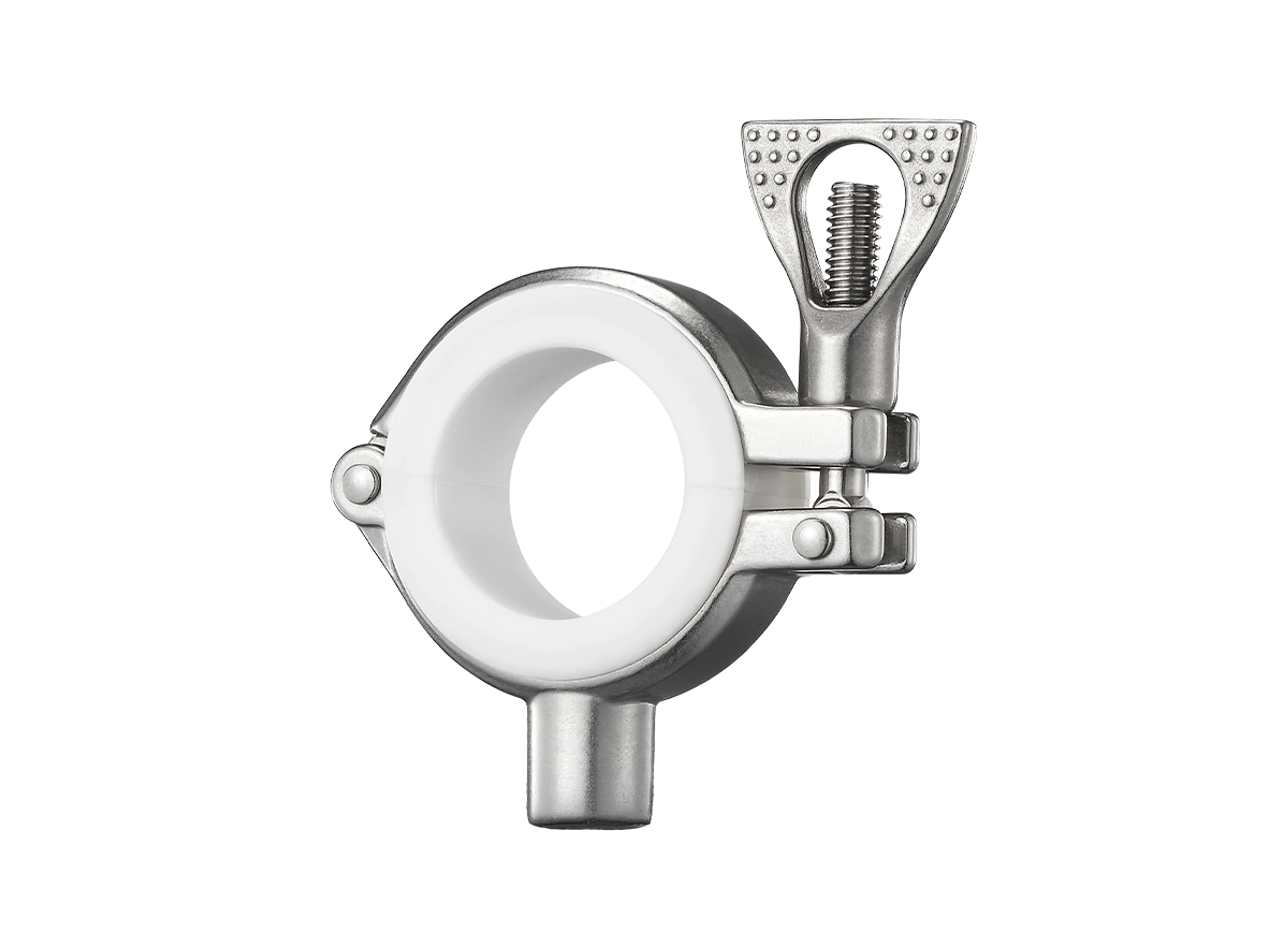

Type NP

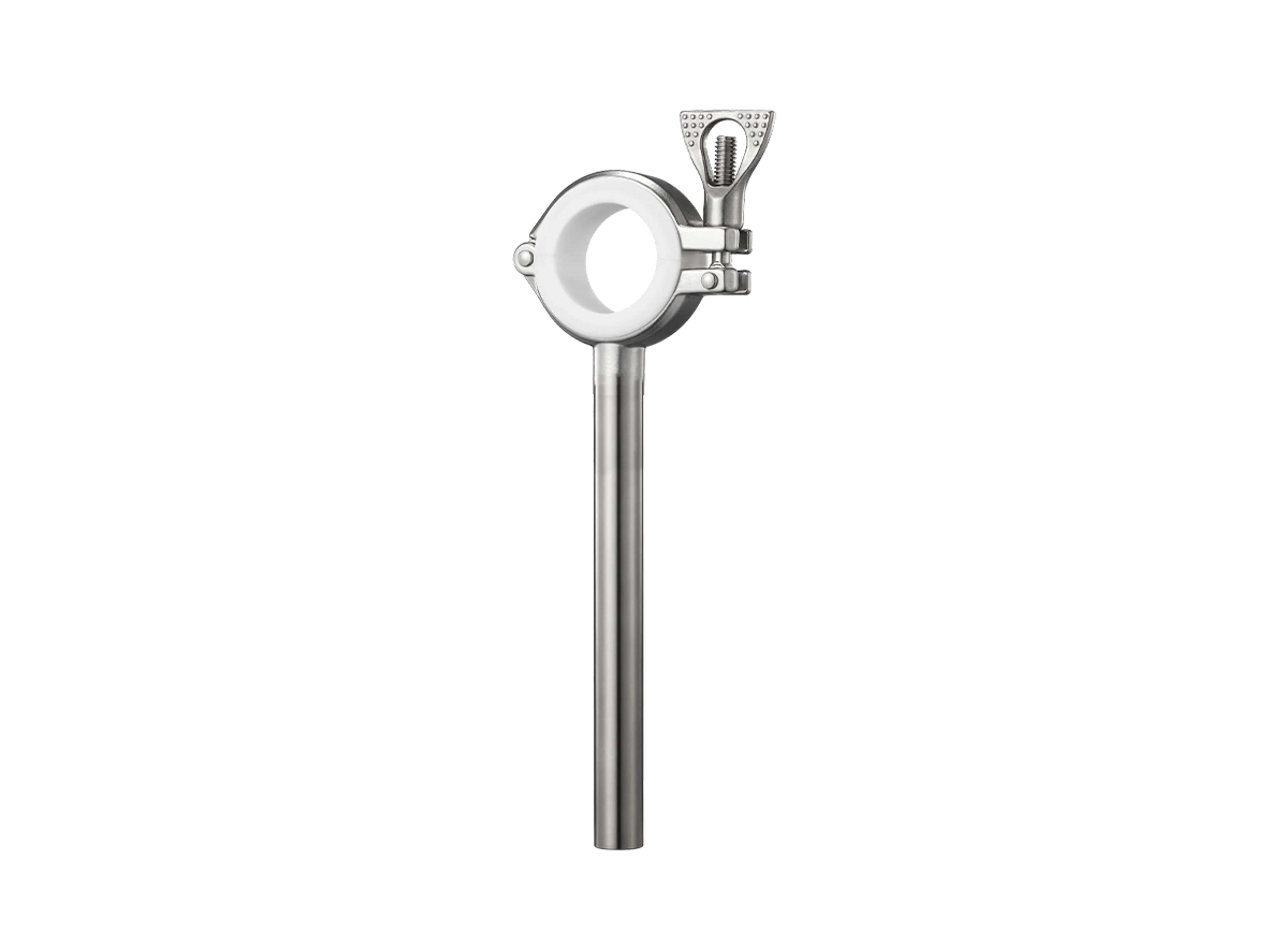

Type NPF

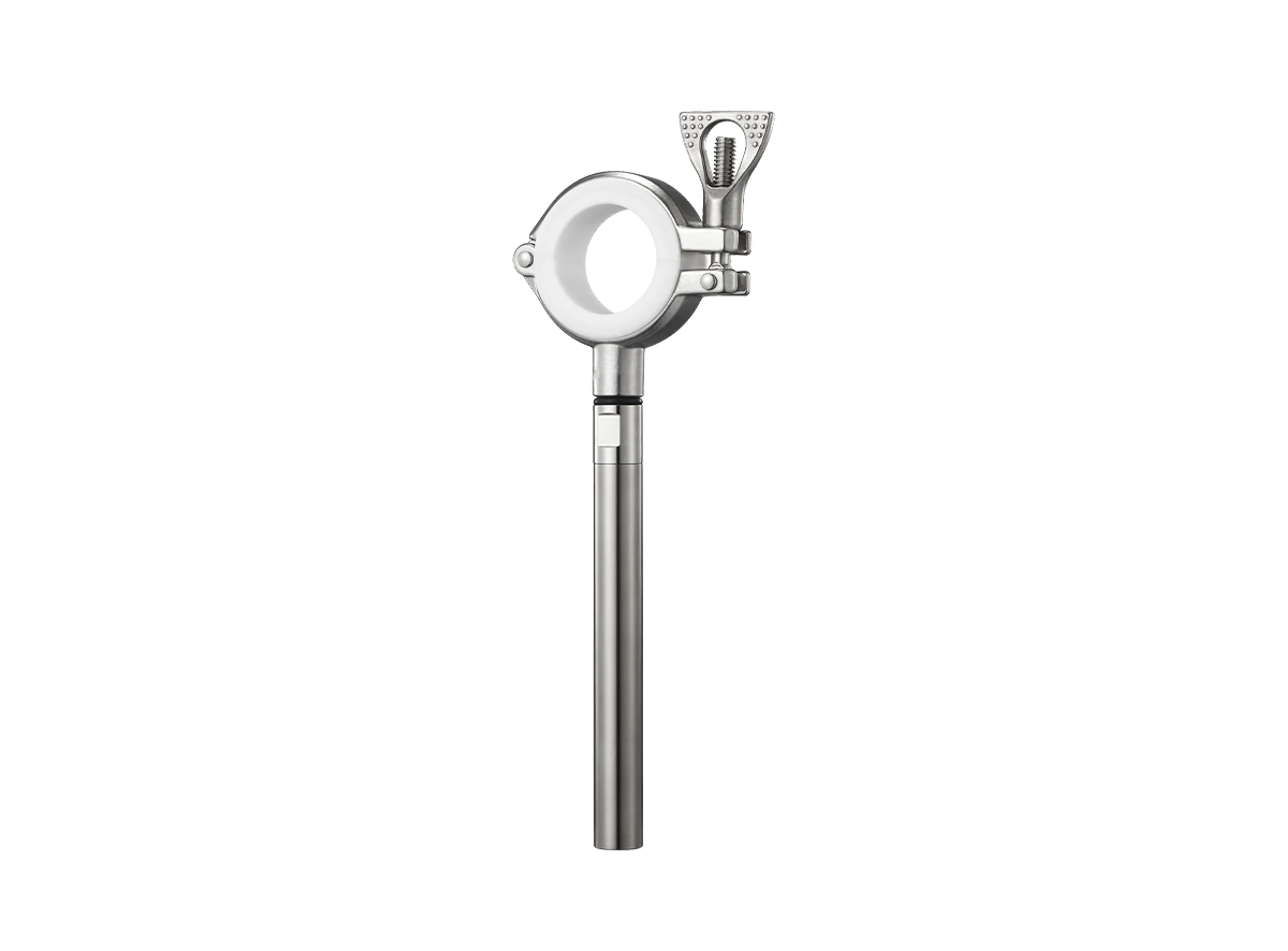

Type NPM & NPR
Technical Specifications
The NEUMO CleanClip system offers precise and adaptable installation options for hygienic pipe support.
- Material: Standard 304 stainless steel; optional 316 stainless steel
- Inner Cap: PTFE (thermal conductivity: 0.23 W/mK; melting point: 327 °C)
- Shaft Length: 200 mm standard; custom lengths available
- Tilt (NPM): Self-adaptive up to 4° in each direction
- Rotation (NPR): 360° free rotation
- Thread Sizes: 3/8", 1/2", 3/4" UNC (ANSI B1.1 standard)
This flexible and hygienic design ensures high precision, corrosion resistance, and easy integration in cleanroom environments.
NEUMO CleanClip pipe hangers represent the highest standards in hygiene, flexibility, and stability. With a wide range of configurations – including fixed, adjustable, and 360° rotating designs – CleanClip offers tailored solutions for demanding hygienic process environments.
Whether in pharmaceutical production, biotechnology facilities, or food and beverage processing, CleanClip ensures secure support, precise alignment, and efficient drainage.
For dimensions, design variants, and technical details, download our full CleanClip brochure below.
