SCIMAX®
ultra-clean tubes for semiconductor applications
SCiMax® flow equipment is engineered for the strict demands of the semiconductor industry. With advanced surface polishing, multi-stage cleaning, and precise manufacturing, SCiMax® tubes deliver maximum cleanability, process stability, and repeatability. Designed for ultra-pure media, SCiMax® stainless steel tubes are the trusted choice in critical semiconductor environments worldwide.
Ultra High Purity with guaranteed Ra
SCiMax® tubes are manufactured to EGMO’s proprietary SMT1 specifications, ensuring full compliance with the strict requirements of the semiconductor industry. With a guaranteed surface roughness (Ra) and exceptional weldability, SCiMax® tubes deliver outstanding orbital welding results, enabling reliable, ultra-pure process systems.
Maximum Guaranteed Ra
Thanks to advanced polishing, SCiMax® tubes offer a guaranteed surface roughness (Ra) on all internal surfaces even in complex areas like bends, where polishing and measurement are especially challenging.
Maximum Cleanability
A multi-stage cleaning process including degreasing, passivation, and electro-polishing ensures a flawless passive layer. Final cleaning with ultra-pure water takes place in a controlled cleanroom environment.
Maximum Availability
With modern production facilities and a strong network across Europe, the USA, and Asia, EGMO ensures fast availability and top quality standards for all semiconductor tubing demands.
Tolerances for Reliable Performance
Our SciMax® products are manufactured to strict tolerances in compliance with ASTM A269, A270, and A632 to ensure consistent quality and optimal fit. Outer diameters, wall thickness (before and after electropolishing), and critical dimensions such as tangent length, squareness, and angle deviations are tightly controlled. End-to-end and center-to-end dimensions are held to a tolerance of ±0.050 inch (1.27 mm). This precision ensures maximum reliability in high-purity applications.

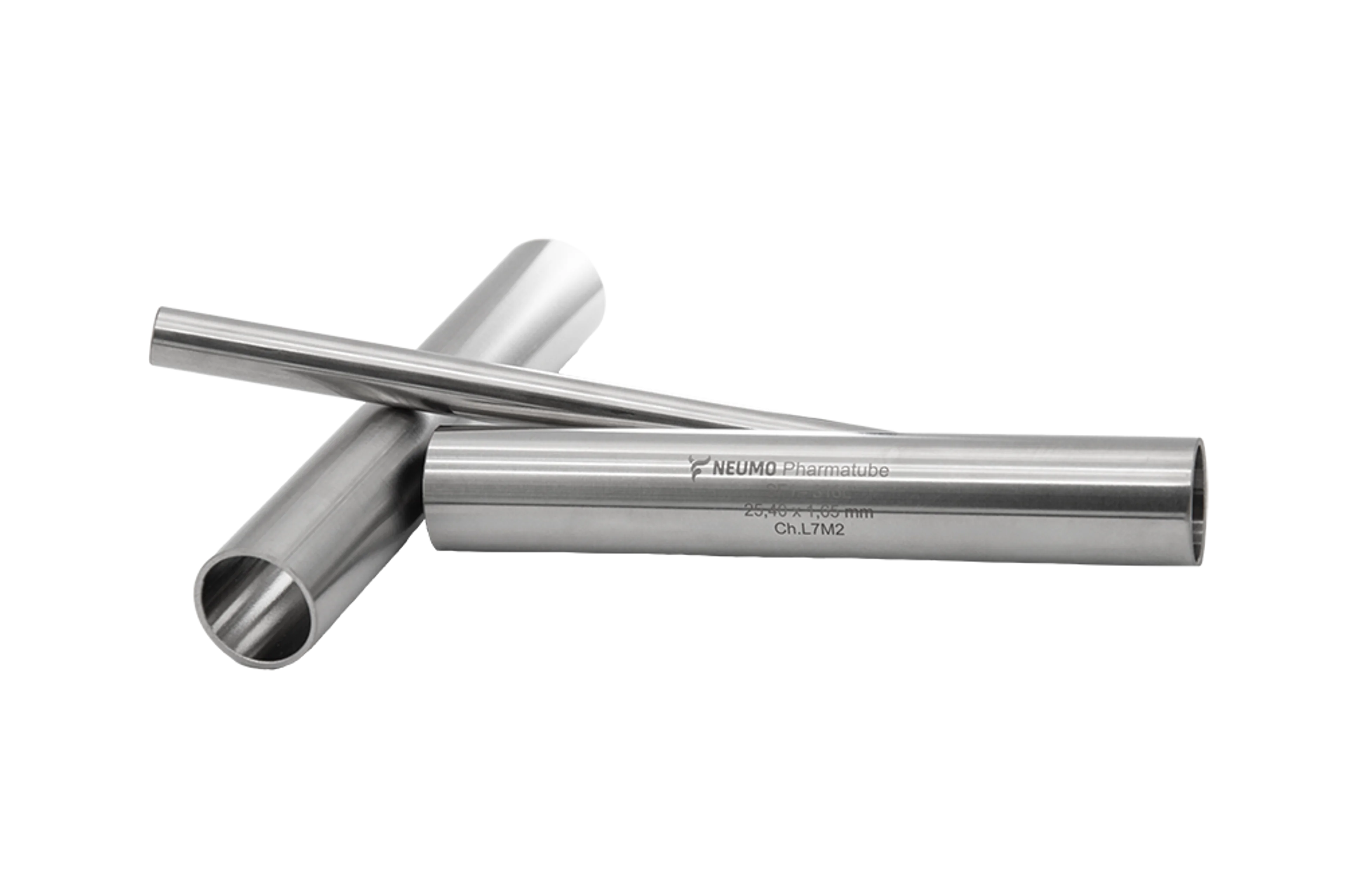

SCiMax® Tubes
Precision Stainless Steel for Ultra-Pure Applications
SCiMax® stainless steel tubes are manufactured to ASTM A269, A270, and A632 standards, ensuring tight dimensional tolerances and excellent material consistency. Available in 316/316L stainless steel and made to SMTI specifications, they feature ≤0.003% sulfur content for superior cleanability and corrosion resistance.
Standard lengths: 20 ft (6.1 m) – custom lengths on request. Working pressures (based on 20,000 psi allowable stress) follow ASME B31.1/B31.3 guidelines and cover a range from ¼" to 6" tubing, making SCiMax ideal for high-purity semiconductor systems.
