HEAT EXCHANGERS

engineered for performance

At NEUMO in Knittlingen, we specialize in the design and manufacturing of customized heat exchangers made of stainless steel and high-performance special alloys. All units are tailored precisely to the customer’s process requirements and built in accordance with recognized international standards.

With over 40 years of engineering experience, we offer complete in-house services—including thermal calculation, mechanical sizing, 3D design, and fabrication. Upon request, we conduct on-site evaluations of existing systems to ensure optimal integration and performance.

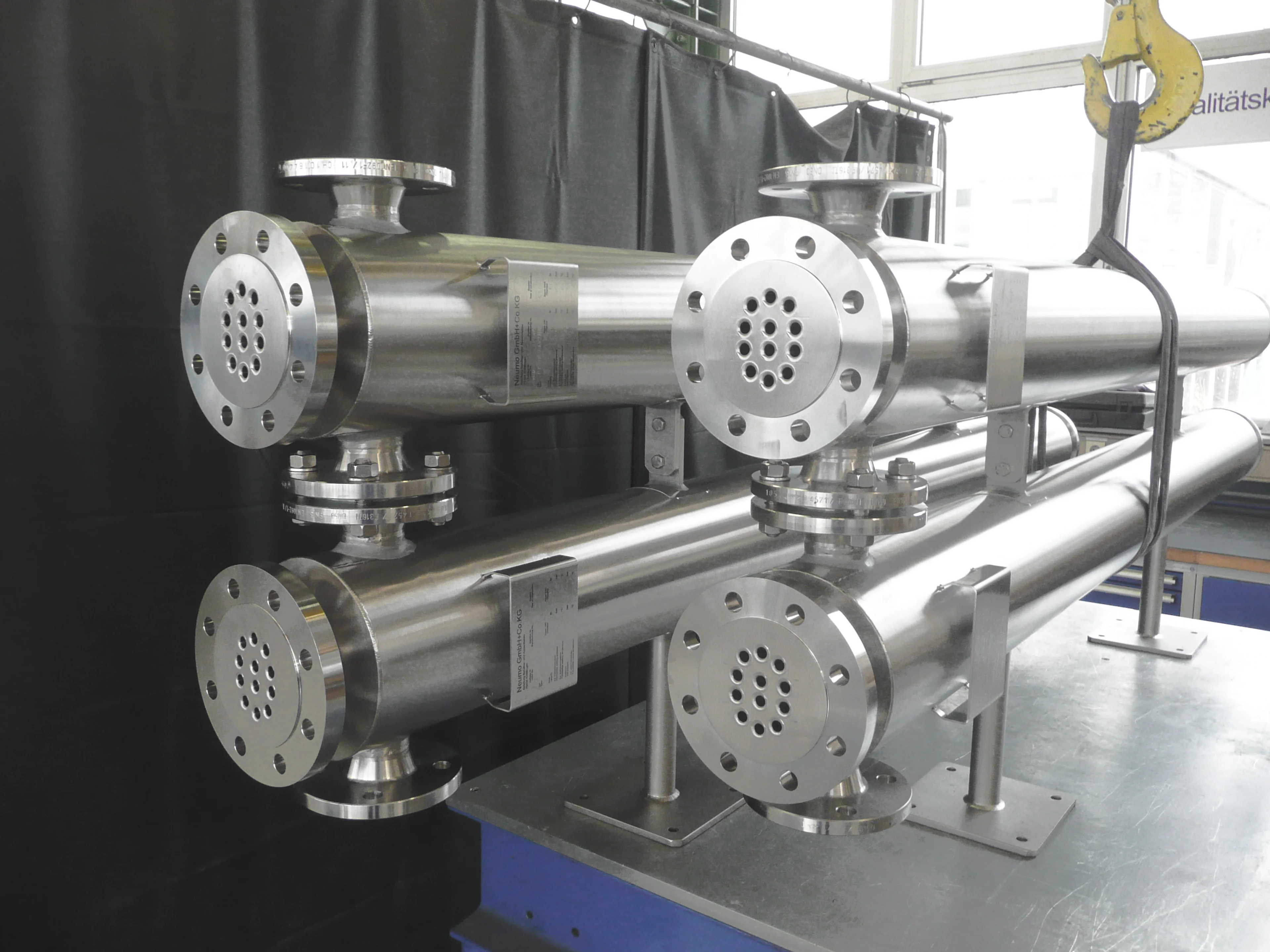

Maximum Safety and Performance

NEUMO aseptic heat exchangers are engineered to guarantee absolute separation between primary and secondary media. This is achieved by integrating a double tubesheet design, eliminating the risk of cross-contamination and ensuring full compliance with the strictest hygiene standards in pharmaceutical, biotech, and food processing applications.

The sterile primary medium flows through seamless tubes, while cooling or heating is provided by the secondary medium in a surrounding chamber. Each exchanger is custom-built, precisely aligned with your process parameters. Even at low flow rates, adjustable tube lengths and quantities deliver maximum thermal efficiency.

To prevent stress cracking due to thermal expansion, the outer shell is equipped with a flexible stainless-steel bellow section, ensuring both mechanical safety and long-term durability in demanding sterile process environments.

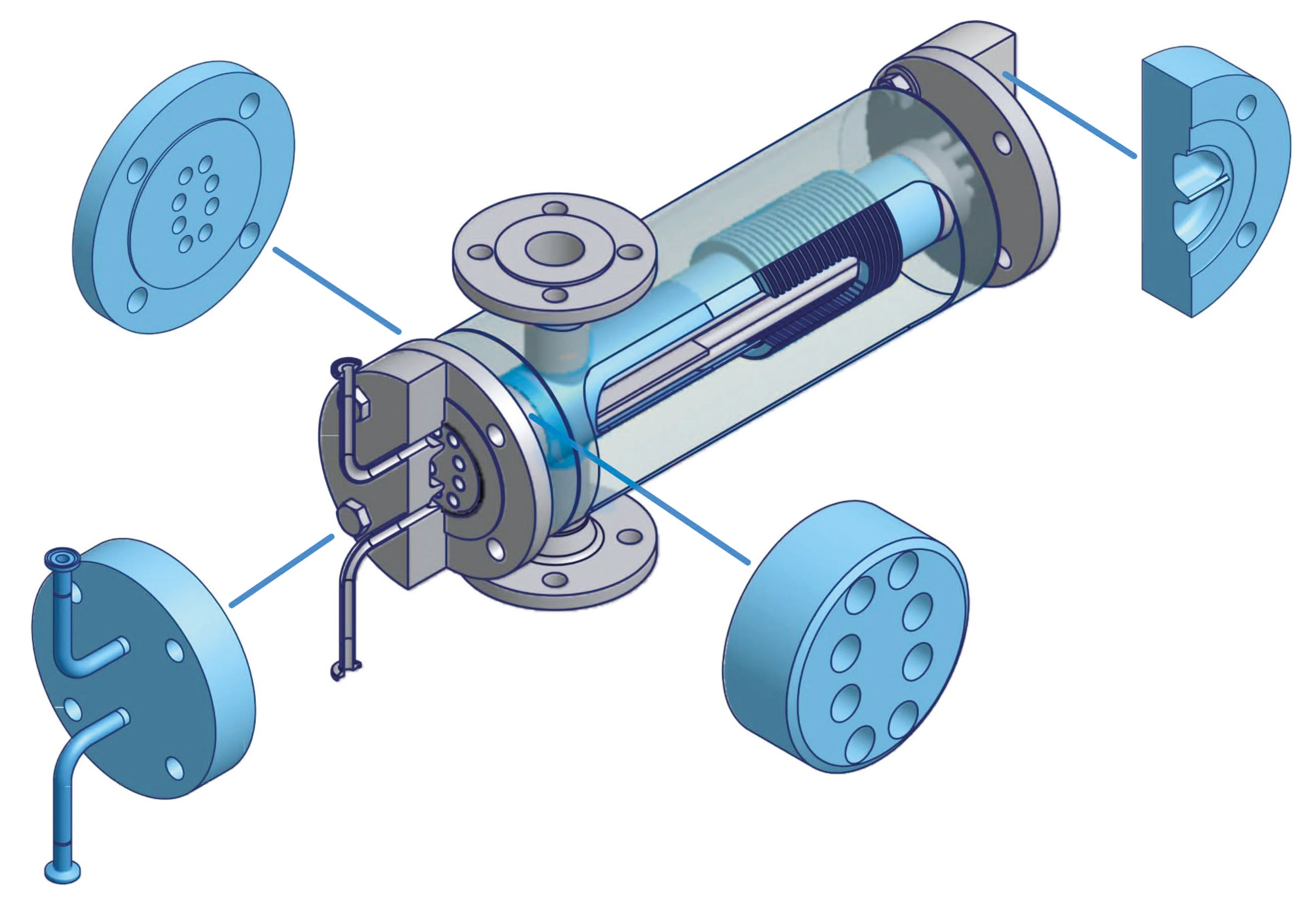

Construction

NEUMO aseptic heat exchangers are custom-engineered for each application, ensuring full compliance with your individual process requirements. The modular tube configuration allows for capacity optimization through adjustable tube lengths and numbers, delivering top performance even at low flow rates.

To eliminate the risk of stress corrosion cracking caused by differential thermal expansion, the outer housing is equipped with a highly flexible stainless steel bellow section. This ensures maximum mechanical integrity, long service life, and operational reliability in sterile process environments.

Aseptic
  • Double tube sheet
  • Standard with high-performance compensator

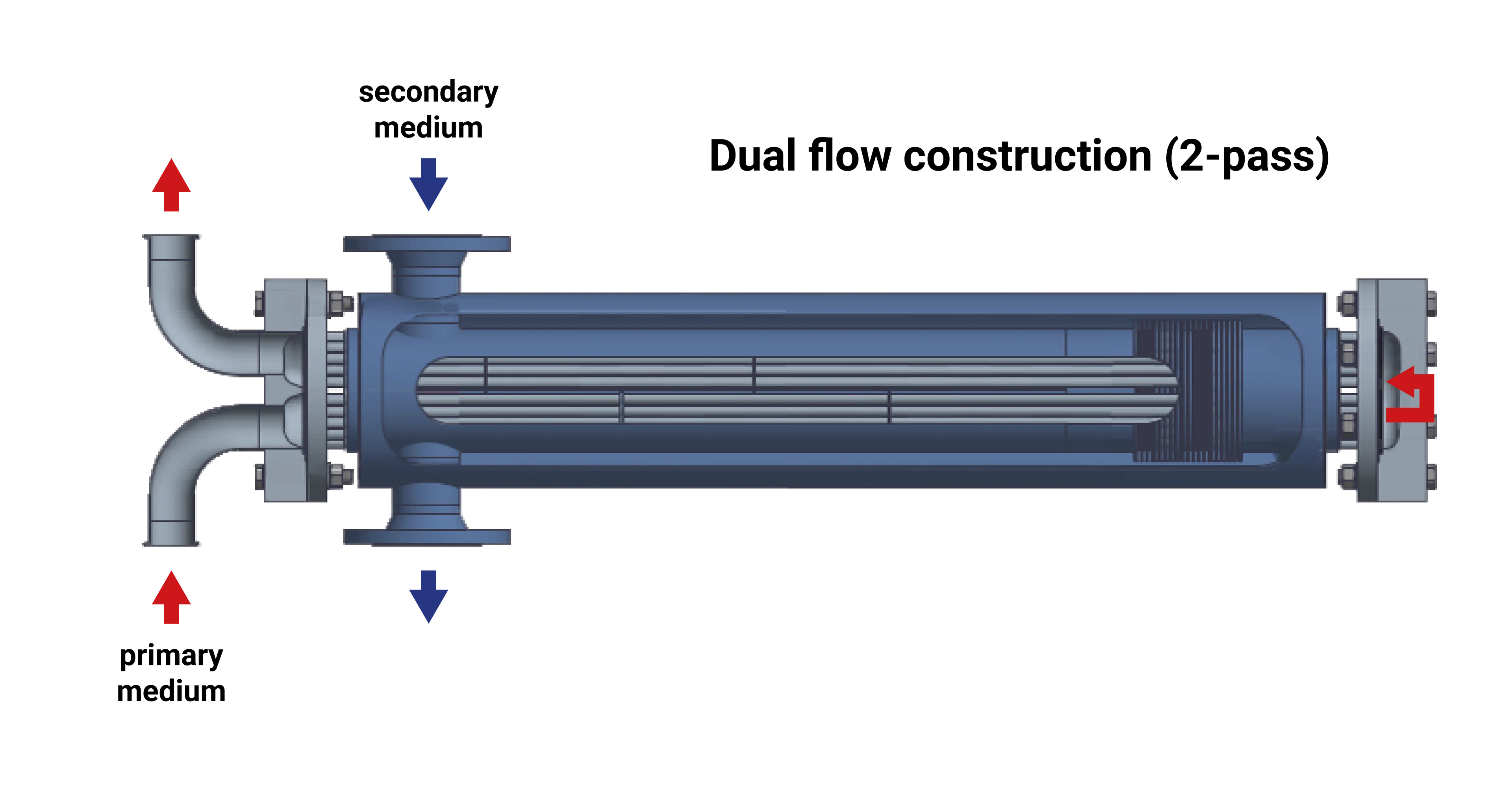

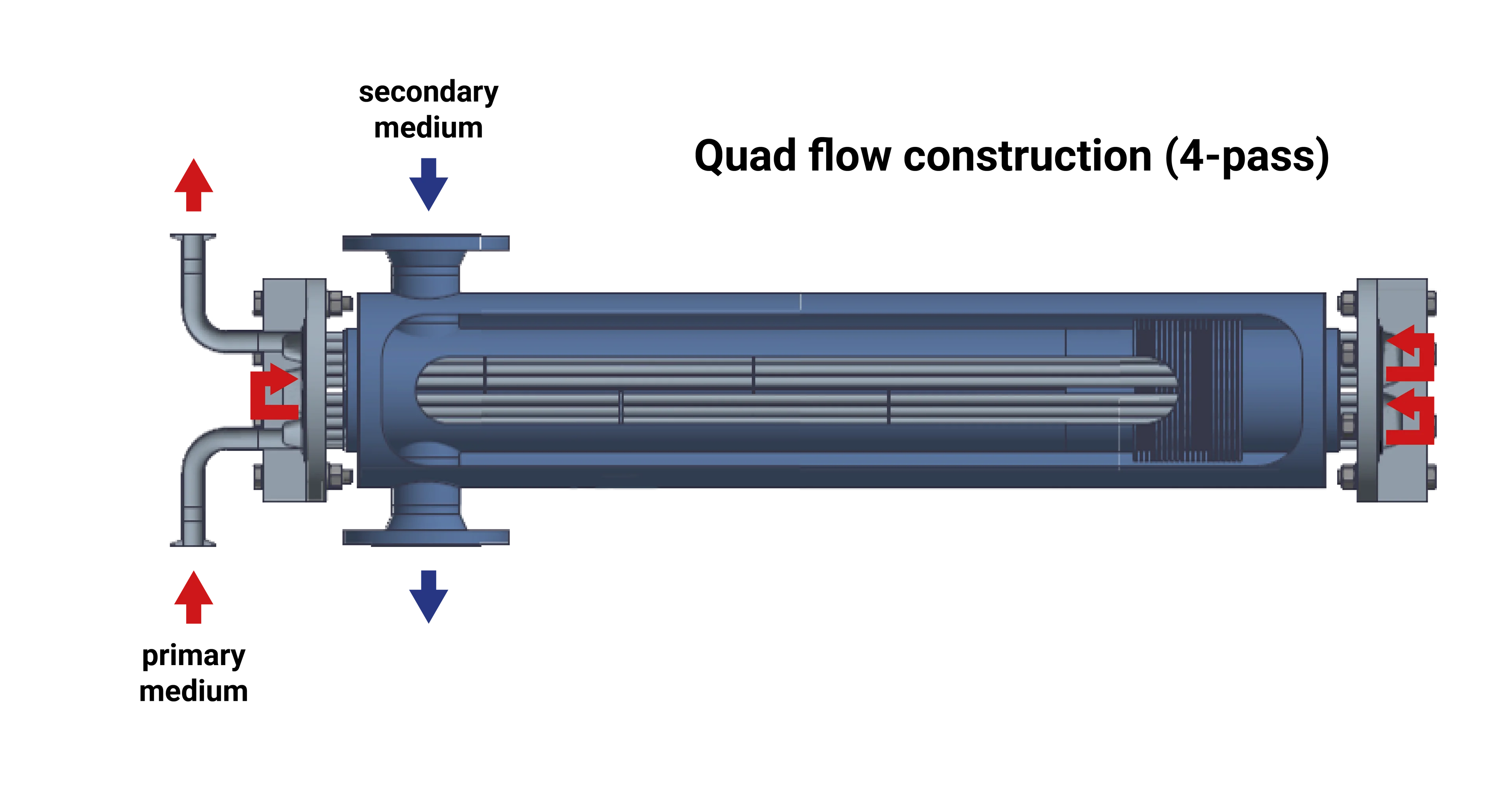

  • Single pass / 2-pass / 4-pass Set-Up
  • Horizontal or Vertical Set-Up
Non-Aspetic
  • Single tube sheet
  • No compensator ex-works
  • Single pass / 2-pass / 4-pass Set-Up
  • Horizontal or Vertical Set-Up
Spiral
  • Can be used at low rates up to 600 kg/h
  • Standard product - short delivery times
  • Vertical installation only
U-Type
  • Tube bundle fixed or removable
  • Double-TS or Single-TS
  • No compensator U bent takes up thermal stress (limited compensation)
Tube-in-Tube
  • Wide range of diameter and length
  • Particularly suitable for applications in the food, pharmaceutical and dairy industry
  • Several tubular HEs can be connected in series (attention: This might not meet the pharma industrial standards)

Important Features

  • Long lifetime of the product
  • Simple set-up and design
  • Quick assembly and disassembly
  • Easy to maintain
  • Almost no spare parts (only gaskets)
  • Low pressure loss
  • Fully drainable

Design Conditions

NEUMO heat exchangers are built to operate safely under demanding conditions. The tubeside and shellside are designed for pressures from –1 bar (vacuum) to 10 bar, and each unit is pressure-tested to 15 bar for maximum safety and reliability.

Temperature handling is equally robust: both sides withstand temperatures down to –10 °C, while the tubeside supports up to 150 °C and the shellside allows for temperatures up to 200 °C, ensuring excellent thermal efficiency across a wide range of aseptic process applications.

For high-temperature processes (around 150 °C and above), appropriate gasket materials are essential to maintain sealing integrity and long-term performance!

Application Industries

  • Pharmaceutical industry
  • Biotechnology
  • Chemical industry
  • Food processing
  • Water processing

Sizes

  • Length up to 6000 mm
  • Nominal diameter of tube bundle up to DN500
  • Constructions outside of this dimensions are possible on request!

Surface finishes

  • pickled / passivated
  • polished (mech.) up to Ra<0,4μm
  • electropolished

Material and Certificates

  • Stainless steel, nickel alloys or special high corrosion resistent materials such as Hastelloy
  • AD 2000 approval - according to HP 0
  • ASME U-Stamp / A-Stamp
  • NB approval (The National Board of Boiler & Pressure Vessel Inspectors)
  • Manufacture License of Special Equipment (P.R. China)
