Measurement of length, diameter and wall thickness. We use calibrated measuring instruments to check every component to an accuracy of 1/10th of a millimetre in order to reliably rule out any deviations.

Direct visual inspection with targeted wall lighting. Using special lighting, we reliably check pipes for cleanliness, surface defects and foreign particles down to the last detail.

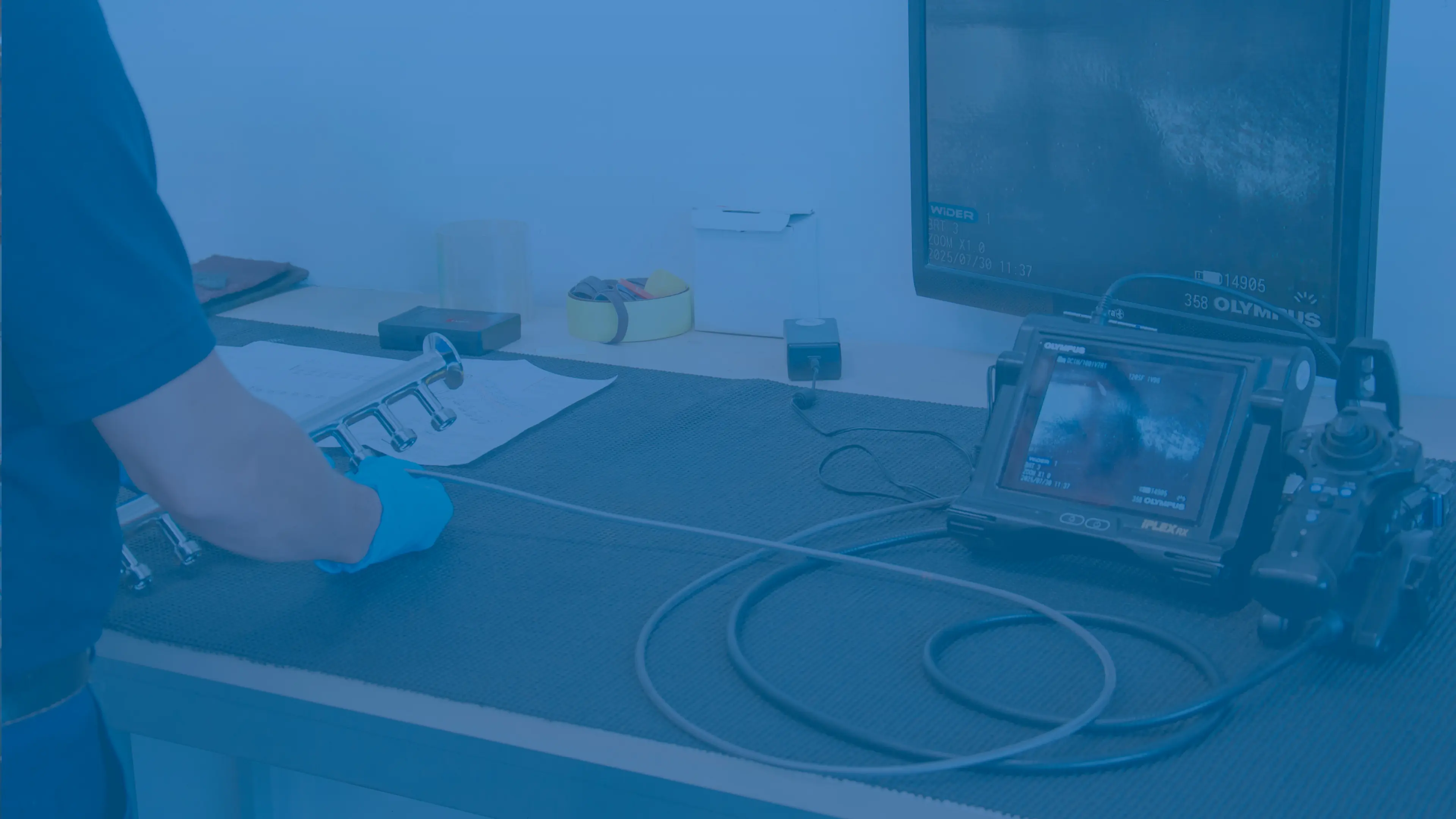

Endoscopic inspection over the entire length of the pipe. Using state-of-the-art endoscope technology, we inspect the entire 6-metre interior of the pipe to reliably detect even the smallest irregularities or contaminants.

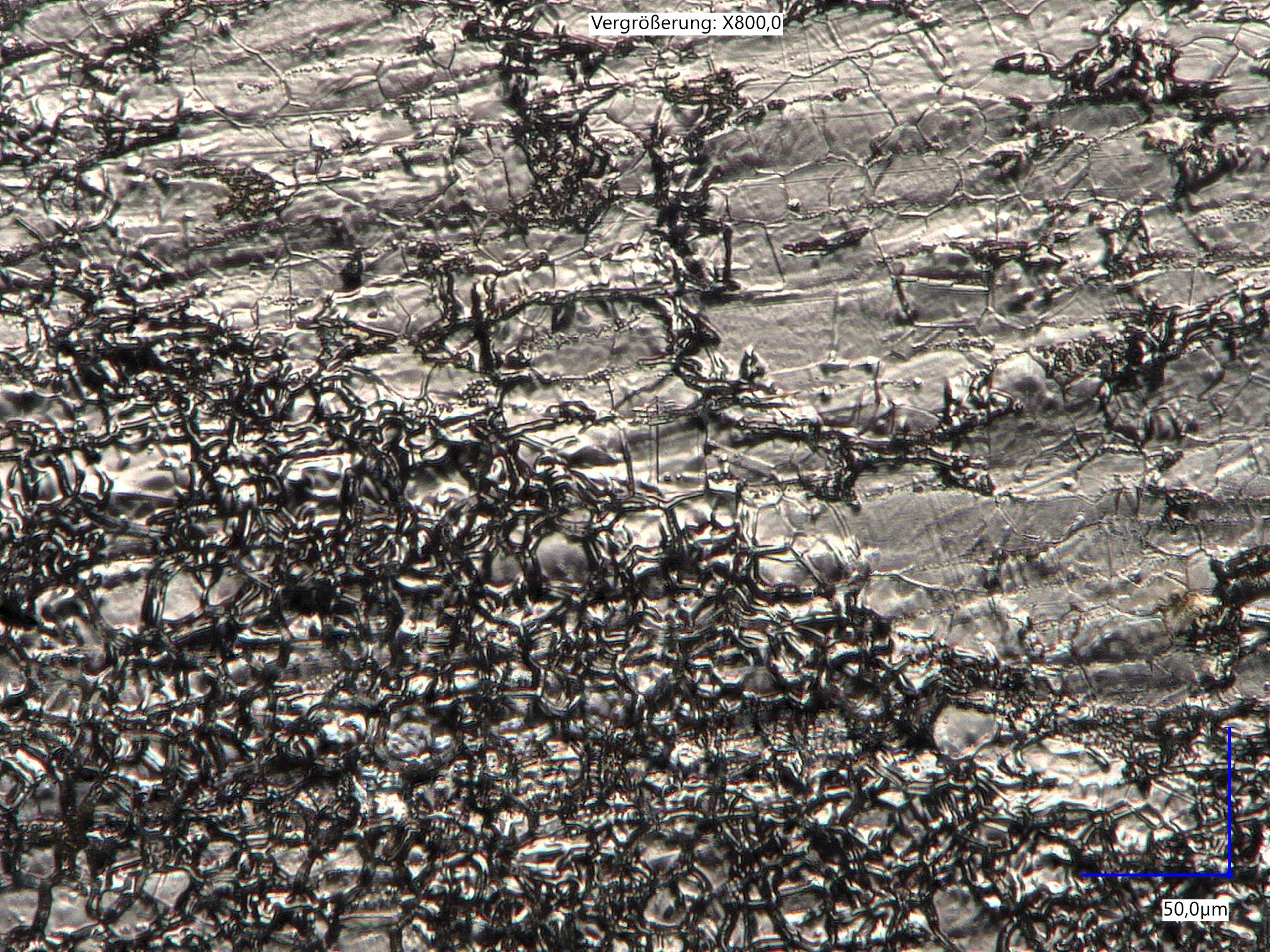

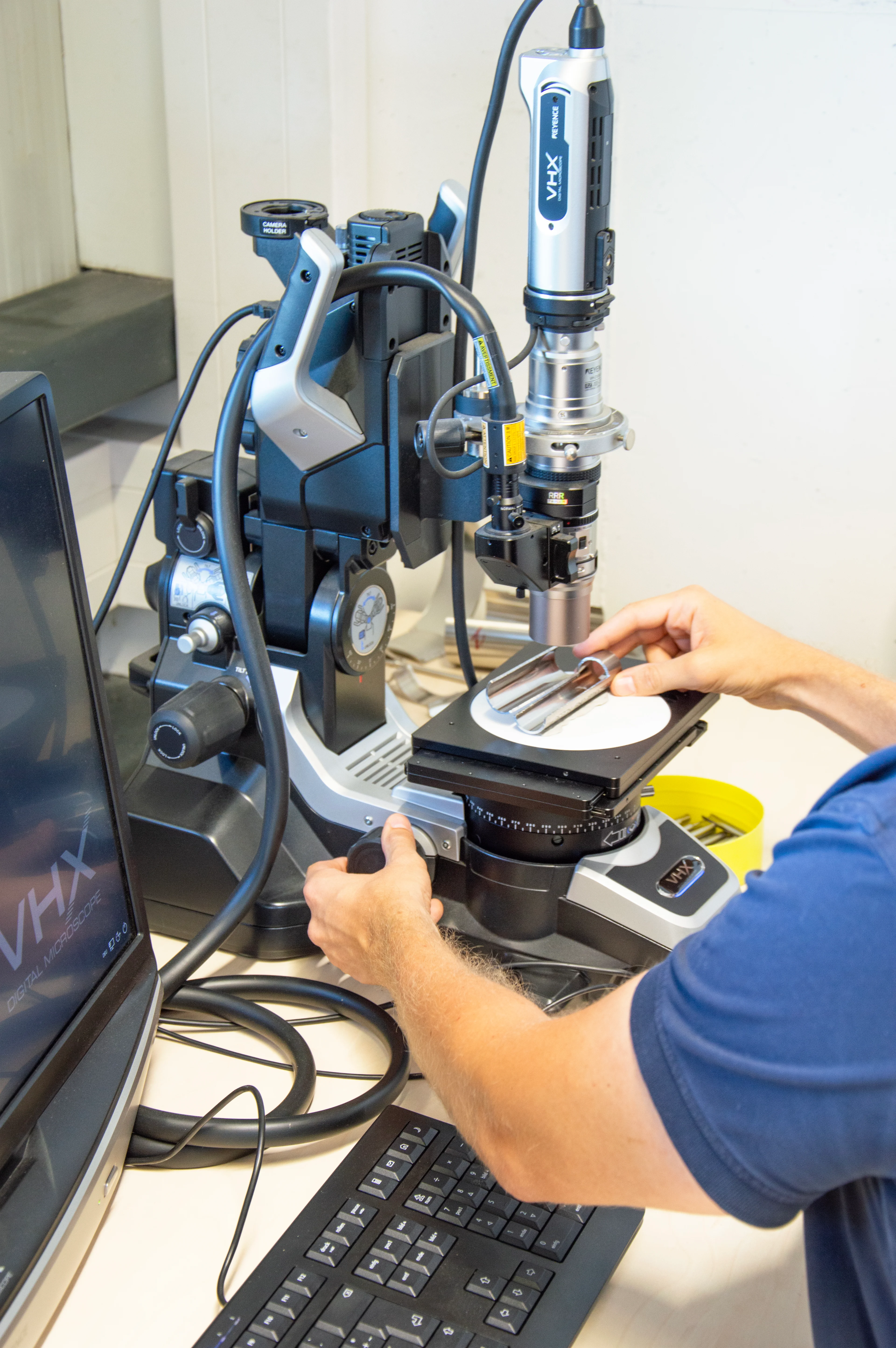

Our microscope examinations with up to 1000x magnification enable the early detection of the finest particles, coatings or structural changes. This ensures that only flawless tube qualities are used, visible down to the grain boundary level.

Positive material identification for 100 % material reliability. Using state-of-the-art PMI analysis, we ensure that every component is made from exactly the specified material, without any risk of material mix-ups.

Measurement of surface roughness according to international standards. We test surface quality according to DIN EN ISO 4287/4288 to ensure that hygiene requirements are met in sensitive processes such as pharmaceuticals and biotechnology.

Visual weld inspection (VT) directly or indirectly using an endoscope. A trained eye for perfect welds. ISO 9712-certified inspectors visually check each weld for shape, uniformity and possible irregularities, a crucial step for the structural integrity and safety of your components.
100 % visual inspection, even in hard-to-reach areas. Using high-resolution endoscope technology, we inspect weld seams even in internal or hard-to-reach areas for seamless quality control without compromise.

Revealing what lies hidden. With dye penetrant testing (PT) in accordance with ISO 9712, even the finest surface cracks in weld seams and workpieces that are invisible to the naked eye can be reliably detected.

A look inside for absolute safety. External X-ray testing (RT) is used to examine the internal structures of welded joints and material cross-sections in order to rule out invisible defects or inclusions, which are then verified internally.

Absolute dimensional accuracy for a perfect fit. Each component is checked for length, diameter and geometry using precise measuring technology to ensure a perfect fit in your system and reliable operation.

Safety under real-life conditions. Our pressure tests, which comply with the requirements of the Pressure Equipment Directive (PED/DGRL), simulate the subsequent operating pressure and ensure that your containers function reliably even under extreme conditions.
